Introduction
In maritime shipping, safe and efficient liquid and gas transfer is crucial. Marine loading arms (MLA) are key to this process, ensuring fast and secure fluid transfers between vessels and terminals.
This article explains the purpose of a marine loading arm, highlighting its role in safety, efficiency, and environmental protection. You'll discover how MLAs improve operations across industries that deal with hazardous or bulk liquids.
What is a Marine Loading Arm?
Definition and Basic Functionality
A Marine Loading Arm (MLA) is a mechanical system used to transfer liquids or gases between a vessel and a shore-based terminal. These systems are mounted on jetties or docks and provide a flexible and secure means of connecting the vessel to the terminal’s pipeline. Unlike traditional hose systems, MLAs are designed for higher volumes, greater safety, and more efficient fluid handling.
The MLA consists of articulated arms that can move horizontally, vertically, and rotate. This flexibility allows it to accommodate various vessel sizes, changing tides, and harsh weather conditions, all while ensuring safe and controlled fluid transfer. It offers a higher level of control compared to older hose or crane-based systems.
Key Components of a Marine Loading Arm
Marine loading arms consist of several essential components that work together to ensure smooth and secure operation:
1. Inboard Arm: The part of the MLA that connects to the terminal or shore-based pipeline.
2. Outboard Arm: The section that connects to the ship's manifold, ensuring a secure transfer of fluid.
3. Swivel Joints: Allow the arm to rotate and follow the vessel's movements without disrupting the fluid flow.
4. Counterweight System: Provides stability and prevents fatigue, ensuring smooth operation during movement.
5. Control System: Manages the movement and operation of the arm, including automatic adjustments for changes in the vessel's position and environmental conditions.

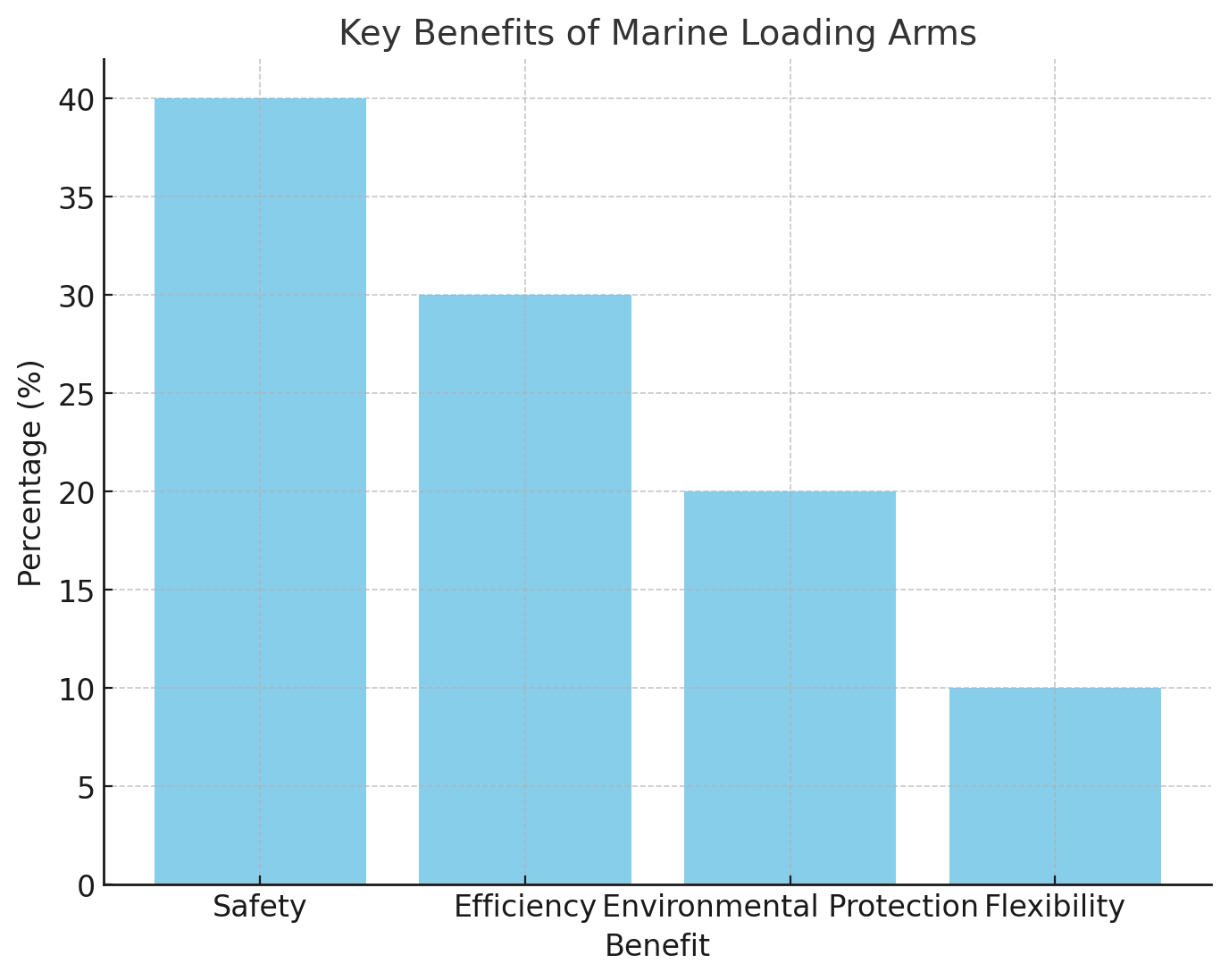

Purpose and Benefits of a Marine Loading Arm
Ensuring Safe and Efficient Liquid Transfer
Marine loading arms are designed for fast, secure, and efficient transfer of liquids and gases. Unlike traditional hoses, which can be prone to leaks and spills, MLAs provide a sealed and controlled environment for loading and unloading. The ability of marine loading arms to adjust to the movement of vessels and environmental conditions significantly reduces the risk of accidents, spills, or operational delays.
Their flexibility ensures that regardless of the size or type of vessel, the MLA can accommodate changing conditions such as tides, waves, and wind. This ability to adapt and ensure a safe transfer process enhances the overall efficiency of the cargo operation.
Environmental Protection
One of the major advantages of marine loading arms is their ability to protect the environment. The sealed nature of MLAs prevents spills and leaks, which are common hazards in the oil and gas industries. By ensuring that fluids are transferred without escaping, these systems reduce the likelihood of pollution, contributing to environmental conservation. Additionally, MLAs are designed to meet stringent environmental standards, further ensuring that operations remain sustainable and eco-friendly.
Increased Efficiency and Reduced Downtime
Marine loading arms significantly increase the efficiency of loading and unloading operations. By automating the connection and disconnection process, MLAs minimize human error and reduce the time required for fluid transfer. This efficiency not only speeds up turnaround times but also optimizes terminal operations, allowing businesses to manage their fleet more effectively. As a result, vessels spend less time in port, and terminals can handle more cargo in less time.
How Marine Loading Arms Improve Operational Safety
Automated and Manual Safety Features
Safety is a top priority in the operation of marine loading arms. MLAs are equipped with several safety features, such as the Emergency Release System (ERS), which allows the arm to detach quickly in the event of an emergency, preventing damage to the vessel or the terminal. Additionally, quick-connect couplers ensure that the connection between the terminal and the vessel is secure, reducing the risk of spills during the transfer.
These safety mechanisms are crucial in high-risk environments such as oil and chemical terminals, where hazardous materials are involved. The incorporation of automatic control systems, alongside manual overrides, ensures that both operators and the environment are protected in case of unforeseen issues.
Flexibility for Changing Conditions
Marine loading arms are specifically designed to adapt to dynamic environmental factors. They accommodate vessel movements caused by tides, waves, or winds. This flexibility is essential for ensuring the stability of the fluid transfer process, as vessels often shift positions while moored. The ability of MLAs to adjust for these movements without compromising safety or operational efficiency is a key factor in their widespread use in maritime cargo operations.
Marine Loading Arm Applications and Industries
Oil and Gas Industry
In the oil and gas industry, marine loading arms are crucial for the transfer of crude oil, refined products, and chemicals. MLAs ensure that this transfer process is fast, secure, and efficient, minimizing the risks of spills and accidents. Due to the large quantities of liquids being moved and the hazardous nature of many oil products, MLAs are the safest and most effective solution for oil terminal operations.
LNG Terminals and Cryogenic Liquids
Liquefied natural gas (LNG) requires specialized handling due to its cryogenic temperature. Marine loading arms used in LNG terminals are equipped with insulation and heating systems to prevent temperature fluctuations that could compromise the safety and integrity of the LNG. These MLAs must adhere to rigorous safety protocols due to the volatile nature of LNG.
Chemical and Petrochemical Industries
Marine loading arms are also used in chemical and petrochemical industries for the safe transfer of various chemicals and petrochemical products. MLAs designed for these operations are built to handle a wide range of materials, from highly corrosive chemicals to toxic gases. The flexibility of MLAs ensures that even with challenging substances, the transfer process remains efficient and safe.
Factors to Consider When Choosing a Marine Loading Arm
Vessel and Terminal Compatibility
Choosing the right marine loading arm depends on factors such as the type of vessel, the cargo being transferred, and the specific terminal infrastructure. The MLA should be designed to accommodate the size of the vessel, the expected flow rate of the liquid, and the specific operational conditions of the terminal.
Maintenance and Durability
Marine loading arms are an investment, and selecting one that is durable and requires minimal maintenance is essential for long-term operational success. High-quality MLAs are built to withstand harsh maritime environments and require fewer repairs, which can reduce downtime and operating costs. Regular maintenance is still required, but the design and materials of the MLA play a significant role in ensuring longevity.
Design Standards and Regulatory Compliance
International Standards for Marine Loading Arms
Marine loading arms are subject to various international standards to ensure safety and reliability. Key standards include those from the Oil Companies International Marine Forum (OCIMF) and the International Organization for Standardization (ISO). These regulations dictate the design, safety features, and performance requirements for MLAs, ensuring that they meet the rigorous demands of the maritime industry.
Safety Protocols and Risk Mitigation
In addition to meeting international standards, MLAs are designed with built-in safety protocols to prevent accidents. These include pressure control systems, emergency shutdown features, and spill containment systems. Adhering to these safety standards ensures that marine loading arms function reliably, even in the most challenging operating conditions.
Conclusion
Marine loading arms are essential for modern cargo transfer, offering high safety, efficiency, and environmental protection. Their flexibility and automated safety features ensure smooth operations in various industries, including oil, LNG, and chemicals.
Investing in high-quality marine loading arms is crucial for optimizing fluid transfer operations. Companies like BNBW provide customizable MLAs, ensuring the highest standards of safety and efficiency for businesses in need of reliable cargo handling solutions.
FAQ
Q: What is a Marine Loading Arm?
A: A Marine Loading Arm (MLA) is a mechanical system designed to transfer liquids or gases between vessels and terminals safely and efficiently. It offers greater flexibility compared to traditional hoses and cranes.
Q: How does a Marine Loading Arm improve safety during cargo transfer?
A: Marine Loading Arms feature automated safety systems, such as Emergency Release Systems (ERS) and quick-connect couplers, which minimize the risk of accidents and spills during operations.
Q: Why are Marine Loading Arms used in oil and gas operations?
A: Marine Loading Arms are essential in the oil and gas industry for safe and efficient transfer of crude oil, refined products, and chemicals, ensuring fast and secure loading/unloading processes.
Q: What are the benefits of using a Marine Loading Arm over traditional methods?
A: MLAs provide a more controlled, flexible, and safer transfer process than traditional hoses and cranes, reducing operational risks and downtime during cargo handling.
Q: How do Marine Loading Arms adapt to changing environmental conditions?
A: Marine Loading Arms are designed with flexibility to adjust to tides, wind, and waves, maintaining safe and efficient operations under various weather conditions.
Q: What industries use Marine Loading Arms?
A: MLAs are widely used in industries such as oil and gas, LNG terminals, and chemical manufacturing, where secure and efficient liquid or gas transfer is crucial.
